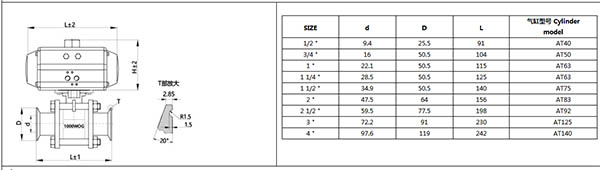

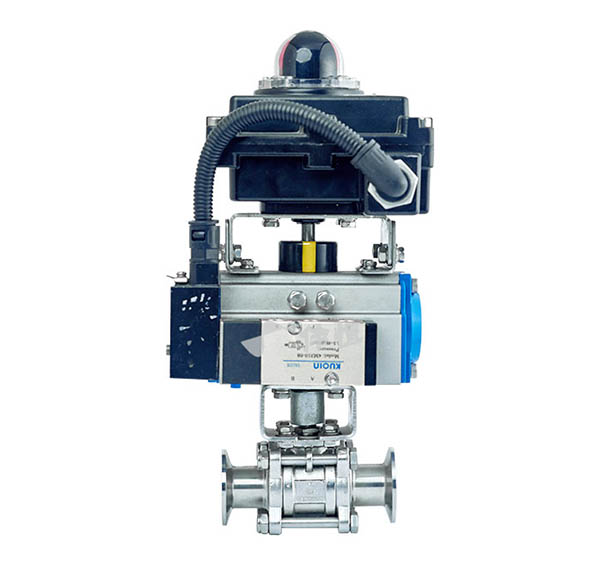

三片式氣動全包球閥

氣動執行器可安裝在二通或者三通的符合ISO5211標準的低平臺和高平臺球閥上

（低平臺球閥可加附支架安裝執行器） 材質：316 ASTM-CF8M A351

閥座：PTFE

Pneumatic Actuator: can be installed into CSE, Two-way or Three- way low platform or high platform which is according to ISO5211 (to the low flatform such as ball valve,a brakect support can be supplied for installing the pneumatic actuator)

Material：316 ASTM-CF8M A351 Valve seat：PTFE

應用 Applications

三片式全包球閥是一款方便安裝、拆卸及清洗的衛生型球閥，用于氣體、液體等物料輸送，這種閥門的應用范圍包括食品、飲料以及制藥和化工業等領域。全通徑及全包密封、閥門設計，極度減小流體阻力和殘留，因此使得此閥門用于處理真空設備或黏性流體的最佳選擇。

The three-piece all-inclusive ball valve is a hygienic ball valve that is easy to install, disassemble and clean. It is used for gas, liquid and other materials. The valve range includes food, beverage and pharmaceutical and chemical industries. Full-bore and all-inclusive seals and valve design minimize fluid resistance and residue, making this valve the best choice for handling vacuum equipment or viscous fluids

標椎設計 standard Design

有各標準的閥門系列可以向客戶提供，即用于DIN標準系列，3A標準系列,SMS標準系列，ISO/IDF標準系列，BS/RJT標準系列，ASME/BPE等標準系列。

球閥的組成部件一般包括：一個帶有貫通腔的球體、閥體、閥門軸芯以及軸密封圈。

現有的球閥系列規格有：焊接式球閥、卡箍式球閥、螺紋式球閥等系列球閥.

Different standard of valve series can supply to customers, they are the DIN standard series,3A standard series, SMS standard series, ISO/IDF standard series, BS/RJT standard series, ASME/BPE etc.

The constitute elements of ball valve always included: one ball body with transfixion cavity, valve body, valve central spindle and spindle shaft seal.

The specification of WEIHENG'S ball valve series are welded ball valve, clamped ball valve, threaded ball valve etc.
